Set Auto Luidsprekers DX13

13cm ( 5" ) Auto Luidsprekers - Visaton No. 4613 - DX 13 - 4 Ohm - Set van 2 luidsprekers + roosters + montagemateriaal

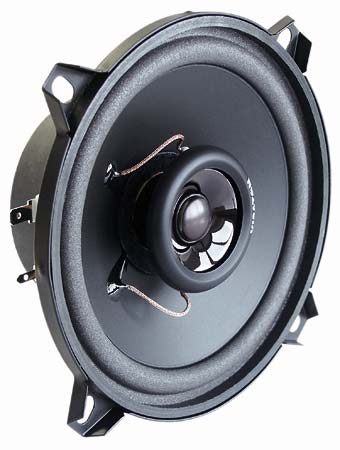

13 cm (5") 2-way coaxial loudspeakers with polypropylene cone and polycarbonate tweeter. Integrated crossover (capacitor) for the tweeter. Very balanced sound. Straightforward insatallation in vehicles with cutouts for 13 cm speakers. Door and rear tray installation possible using mounting ring and grille.

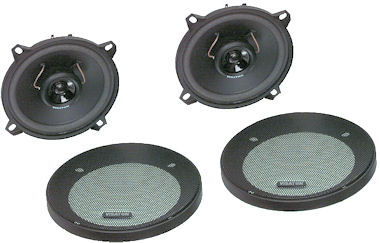

Mounting accessories and protective grilles are included.


Technical Data:
Rated power 60 Watt
Maximum power 80 Watt
Nominal impedance 4 Ohm
Frequency response (-10 dB) 70 - 20000 Hz
Mean sound pressure level 86 dB (1W/1m)
Maximum cone displacement 5 mm
Resonance frequency fs 90 Hz
Magnetic induction 1,1 Tesla
Magnetic flux 345 � Weber
Height of front pole-plate 4 mm
Voice coil diameter 2,5 cm
Height of winding 7 mm
Cutout diameter 11,6 cm
Net weight 0,69 kg
D.C. resistance Rdc 3,3 Ohm
Mechanical Q factor Qms 8,51
Electrical Q factor Qes 1,07
Total Q factor Qts 0,95
Effective piston area Sd 88 cm2
Inductance of the voice coil L 0,39 mH
